Create UMAP of single cell features

[1]:
from livecellx.sample_data import tutorial_three_image

dic_dataset, mask_dataset = tutorial_three_image(dic_dataset_path="../datasets/test_data_STAV-A549/DIC_data", mask_dataset_path="../datasets/test_data_STAV-A549/mask_data")
3 png img file paths loaded:
3 tif img file paths loaded:
[2]:
from livecellx.core.io_sc import prep_scs_from_mask_dataset
scs = prep_scs_from_mask_dataset(mask_dataset, dic_dataset)
100%|██████████| 3/3 [00:07<00:00,  2.43s/it]
[3]:
from livecellx.trajectory.feature_extractors import compute_haralick_features, compute_skimage_regionprops
from livecellx.preprocess.utils import normalize_img_to_uint8
for sc in scs:
    features = compute_skimage_regionprops(sc, preprocess_img_func=normalize_img_to_uint8, sc_level_normalize=True)
[4]:
sc.get_feature_pd_series()
[4]:
skimage_area                 22262.000000
skimage_area_bbox            39672.000000
skimage_area_convex          23414.000000
skimage_area_filled          22262.000000
skimage_axis_major_length      263.397536
                                 ...
skimage_orientation             -1.053940
skimage_perimeter              660.825469
skimage_perimeter_crofton      629.183347
skimage_solidity                 0.950799
t                                2.000000
Length: 144, dtype: float64
[5]:
def create_sc_table(scs, normalize_features=True):
    import pandas as pd
    import numpy as np
    df = pd.DataFrame([sc.get_feature_pd_series() for sc in scs])
    if normalize_features:
        for col in df.columns:
            df[col] = (df[col] - df[col].mean())
            col_std = df[col].std()
            if col_std != 0 and not np.isnan(col_std):
                df[col] /= col_std
    # remove column t from df
    df.drop("t", axis=1, inplace=True)
    # df["sc_id"] = [sc.id for sc in scs]
    # df["t"] = [sc.timeframe for sc in scs]
    # df.set_index("sc_id", inplace=True)
    return df

sc_feature_table = create_sc_table(scs)
sc_feature_table[:2]
[5]:
skimage_area skimage_area_bbox skimage_area_convex skimage_area_filled skimage_axis_major_length skimage_axis_minor_length skimage_centroid-0 skimage_centroid-1 skimage_centroid_local-0 skimage_centroid_local-1 ... skimage_moments_weighted_normalized-2-2 skimage_moments_weighted_normalized-2-3 skimage_moments_weighted_normalized-3-0 skimage_moments_weighted_normalized-3-1 skimage_moments_weighted_normalized-3-2 skimage_moments_weighted_normalized-3-3 skimage_orientation skimage_perimeter skimage_perimeter_crofton skimage_solidity
0 -0.729877 -0.697465 -0.785715 -0.729877 -1.025767 -0.300223 -0.557043 -0.863007 -0.557043 -0.863007 ... -1.144537 0.705302 0.791071 0.81463 -0.703368 1.11867 -0.394298 -0.881596 -0.912129 1.276949
1 -0.729877 -0.697465 -0.785715 -0.729877 -1.025767 -0.300223 -0.557043 -0.863007 -0.557043 -0.863007 ... -1.144537 0.705302 0.791071 0.81463 -0.703368 1.11867 -0.394298 -0.881596 -0.912129 1.276949

2 rows × 143 columns

Normalize features

Perform UMAP on features

[6]:
import umap
reducer = umap.UMAP()
[7]:
# check if any columns are all NaN
sc_feature_table = sc_feature_table.dropna(axis=1, how="all")
[8]:
embedding = reducer.fit_transform(sc_feature_table)
[9]:
embedding.shape
[9]:
(42, 2)
[10]:
import matplotlib.pyplot as plt
plt.scatter(
    embedding[:, 0],
    embedding[:, 1],
    c=[sc.timeframe for sc in scs],
)
[10]:
<matplotlib.collections.PathCollection at 0x21c21c02ec0>
../../_images/livecellx_notebooks_tutorials_tutorial_umap_12_1.png
[11]:
unnormalized_img_features = create_sc_table(scs, normalize_features=False)
# drop na
unnormalized_img_features = unnormalized_img_features.dropna(axis=1, how="all")
reducer = umap.UMAP()
unnormalized_embedding = reducer.fit_transform(unnormalized_img_features)
plt.scatter(
    unnormalized_embedding[:, 0],
    unnormalized_embedding[:, 1],
    c=[sc.timeframe for sc in scs],
)

[11]:
<matplotlib.collections.PathCollection at 0x21c15a2f6a0>

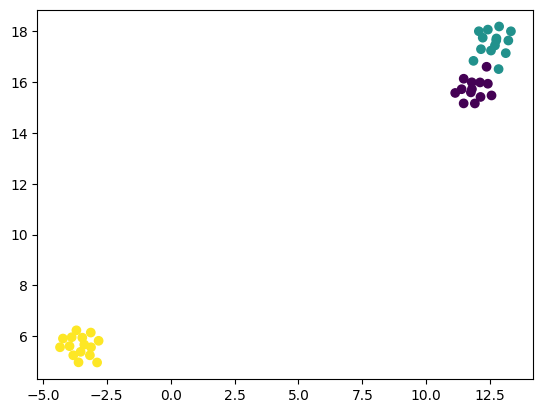

../../_images/livecellx_notebooks_tutorials_tutorial_umap_13_1.png
[ ]:
list(unnormalized_img_features.keys())
