Display attributes of single cells and trajectory

This tutorial is designed to introduce you to the methods of displaying and understanding the attributes of individual cells and their trajectories.

#import some necessary libraries
import numpy as np
from pathlib import Path
import matplotlib.pyplot as plt
from napari.layers import Shapes
import livecellx.sample_data

Data Preparation

Before diving into the displaying, we will use a sample dataset of images and masks that represent single-cell observations over time.

Load sample dataset

We specify the paths to the DIC (Differential Interference Contrast) and mask datasets. Subsequently, we utilize the tutorial_three_image_sys function from the livecellx.sample_data module to load the DIC and mask datasets.

dic_dataset_path = Path("../datasets/test_data_STAV-A549/DIC_data")
mask_dataset_path = Path("../datasets/test_data_STAV-A549/mask_data")
dic_dataset, mask_dataset = livecellx.sample_data.tutorial_three_image_sys(dic_dataset_path, mask_dataset_path, dir="../datasets")
|-----> Downloading data to ../datasets\test_data_STAV-A549.zip
|-----> Data already exists at ../datasets\test_data_STAV-A549.zip
|-----> Extracting data to ../datasets
3 png img file paths loaded;
3 tif img file paths loaded;

Here, we prepare single-cell data from the mask dataset. This data will be used to track cell trajectories.

## Prepare the single-cell data from dataset
from livecellx.core.io_sc import prep_scs_from_mask_dataset
single_cells = prep_scs_from_mask_dataset(mask_dataset, dic_dataset)
100%|██████████| 3/3 [00:07<00:00,  2.37s/it]

Track single cells

We perform tracking on single cells to obtain their trajectories.

# Import tracking utilities
from livecellx.track.sort_tracker_utils import (

# Perform the tracking
traj_collection = track_SORT_bbox_from_scs(single_cells, dic_dataset, mask_dataset=mask_dataset, max_age=1, min_hits=1)

Get a sample trajectory

trajectory = traj_collection.get_all_trajectories()[0]

Display single cells and trajectories using Napari

Napari is a multi-dimensional image viewer, which is designed for browsing, annotating, and analyzing large multi-dimensional images. Now let’s display the atrributes of single cells, their trajectories and its collection of single-cell trajectories using Napari.

Create Napari viewer

We initialize a Napari viewer to display the DIC images.

import napari
from livecellx.core.sc_seg_operator import ScSegOperator, create_sc_seg_napari_ui
# Create Napari viewer
viewer = napari.view_image(dic_dataset.to_dask(), name="dic_image", cache=True)


Create displayer

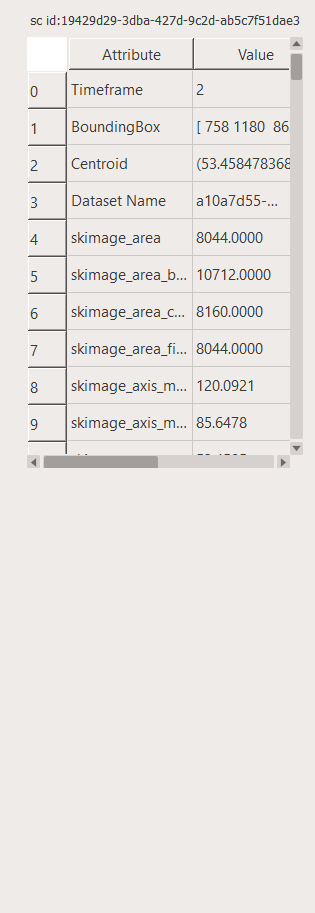

Now, we create a Single Cell (Sc) Displayer to display individual cell and its attributes in the Napari viewer.

# Importing displayer utilities
from livecellx.core.displayer import Displayer, ScDisplayer, SctDisplayer, create_sc_displayer_napari_ui, create_sct_displayer_napari_ui, create_sctc_displayer_napari_ui

# Creating an Sc Displayer
sample_sc = single_cells[10]
sc_displayer = ScDisplayer(sc=sample_sc, viewer=viewer)

We then create a Single Cell Trajectory (Sct) Displayer to display cell trajectories.

# Create the SctDisplayer
sct_displayer = SctDisplayer(trajectory=trajectory, viewer=viewer)
# Generate the napari UI for Sct

Finally, we create a generic Displayer to display the collected trajectories in the Napari viewer.

# Create the generic Displayer for Sctc
sctc_displayer = Displayer(viewer=viewer)
# Generate the napari UI for Sctc
create_sctc_displayer_napari_ui(sctc_displayer, sctc=traj_collection)
